Why Is ESD Such a Major Concern in Semiconductor Facilities?

Semiconductor fabs deal with highly sensitive devices like:

  • CMOS transistors

  • DRAM and NAND flash memory

  • RF ICs

  • MEMS and sensor dies

These components have extremely low breakdown voltages and can be permanently damaged by even the tiniest static discharges.


Here's why ESD control is non-negotiable:

1. Microscopic Structures, Macroscopic Damage

Modern semiconductor devices have nanometer-scale features. A tiny discharge can punch through a gate oxide, short a junction, or degrade a metal trace, leading to:

  • Immediate device failure

  • Latent defects that pass testing but fail in the field

  • Reduced long-term reliability

2. High-Volume, High-Cost Yield Loss

Each wafer can hold thousands of dies, and a single unprotected step can reduce overall yield — translating to tens or hundreds of thousands of dollars in lost revenue per lot.

3. Cleanroom Conditions Can Increase ESD Risk

Ironically, cleanroom environments, necessary for semiconductor fabrication, often have dry, low-humidity air — ideal conditions for charge buildup.

  • Movement of personnel, carts, and materials generates static.

  • Synthetic garments or footwear can accumulate charge without proper grounding.


Common ESD Damage Mechanisms in Semiconductors

Understanding how ESD damages ICs helps in planning protection strategies. Common damage modes include:

Human Body Model (HBM)

  • Simulates a discharge from a person to a device

  • Typical test levels: 500V to 2000V

  • Most common ESD event in manual handling

Charged Device Model (CDM)

  • Device itself becomes charged and discharges to ground

  • Common in automated handling or wafer probing

  • Much faster discharge — more damaging than HBM

Machine Model (MM)

  • Discharge from a machine or tool

  • Less common today but still considered in high-speed test environments


ESD Control Strategies in Semiconductor Manufacturing

1. ESD Protected Areas (EPA)

Entire sections of semiconductor fabs are designated as EPAs, where everything and everyone is grounded or neutralized.

Features of an EPA:

  • Conductive floors and chairs

  • Static-dissipative surfaces

  • Grounded tools and instruments

  • ESD signage and access control

2. Personnel Grounding

Humans are one of the biggest ESD risks. Every operator must be grounded via:

  • Wrist straps (for manual assembly or inspection)

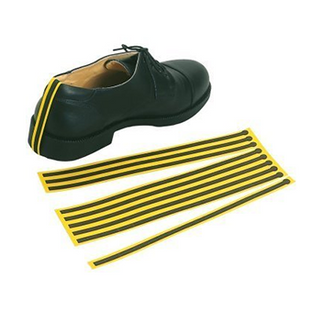

  • Heel grounders or ESD shoes

  • ESD garments and gloves


3. Environmental Controls

  • Maintain humidity levels between 40–60% RH to reduce charge accumulation.

  • Use ionizers to neutralize static in areas with insulators (e.g., wafer carriers, plastic packaging).

  • Regularly monitor environmental conditions.

Ionizer
Ionizer

4. Automated Handling Systems

Automated wafer handlers, robotic arms, and inspection tools must be:

  • Properly grounded

  • Made from static-dissipative materials

  • Routinely verified for charge accumulation

5. ESD Testing and Auditing

Routine audits ensure compliance and safety:

  • Resistance-to-ground testing

  • Wrist strap and footwear testers

  • Continuous monitors

  • Periodic ESD training for personnel


Standards and Compliance for ESD in Semiconductors

To align with global best practices, most fabs adopt ESD control standards like:

  • ANSI/ESD S20.20 – widely accepted in semiconductor and electronics sectors

  • IEC 61340-5-1 – international standard for EPA setup and controls

  • JEDEC JESD625 – specific to semiconductor handling and packaging

These standards provide guidelines for grounding, materials selection, auditing, and training.


Real-World Impact of ESD Failures in Semiconductor Facilities

Case Study Example: A leading memory manufacturer experienced a 3% yield drop across two wafer lots. Investigation revealed a defective wrist strap tester in the final inspection zone. The result? Over $750,000 in lost product and delayed delivery penalties — all from one ESD failure point.

This highlights why proactive ESD protection is not just a QA concern — it’s a mission-critical strategy.


Conclusion: No Room for ESD in Semiconductor Facilities

From front-end wafer fabrication to back-end testing and packaging, ESD protection is critical at every stage of semiconductor production. As devices get smaller and more sensitive, the risks increase — but so do the tools and methods available to protect them.

Investing in a robust ESD control program isn’t optional — it’s essential for maintaining high yields, low defect rates, and long-term customer satisfaction.
